Solar Switchboard Upgrade for Battery and Ducted Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was necessary.

Why Choose Precision Electrical & Air for Your Switchboard Upgrade

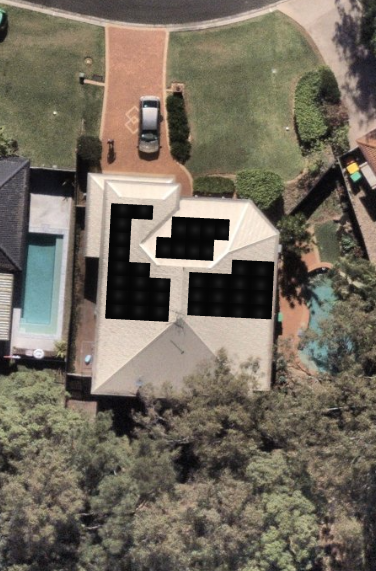

This homeowner in Chelmer undertook an extensive renovation project, encompassing the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and comprehensive blackout protection for the entire residence. Furthermore, a new ducted air conditioning system was seamlessly integrated into the overall plan. Before connecting these advanced systems, it was essential to evaluate and enhance the current switchboard to ensure it met the latest regulations and could effectively manage the increased electrical loads introduced by these installations.

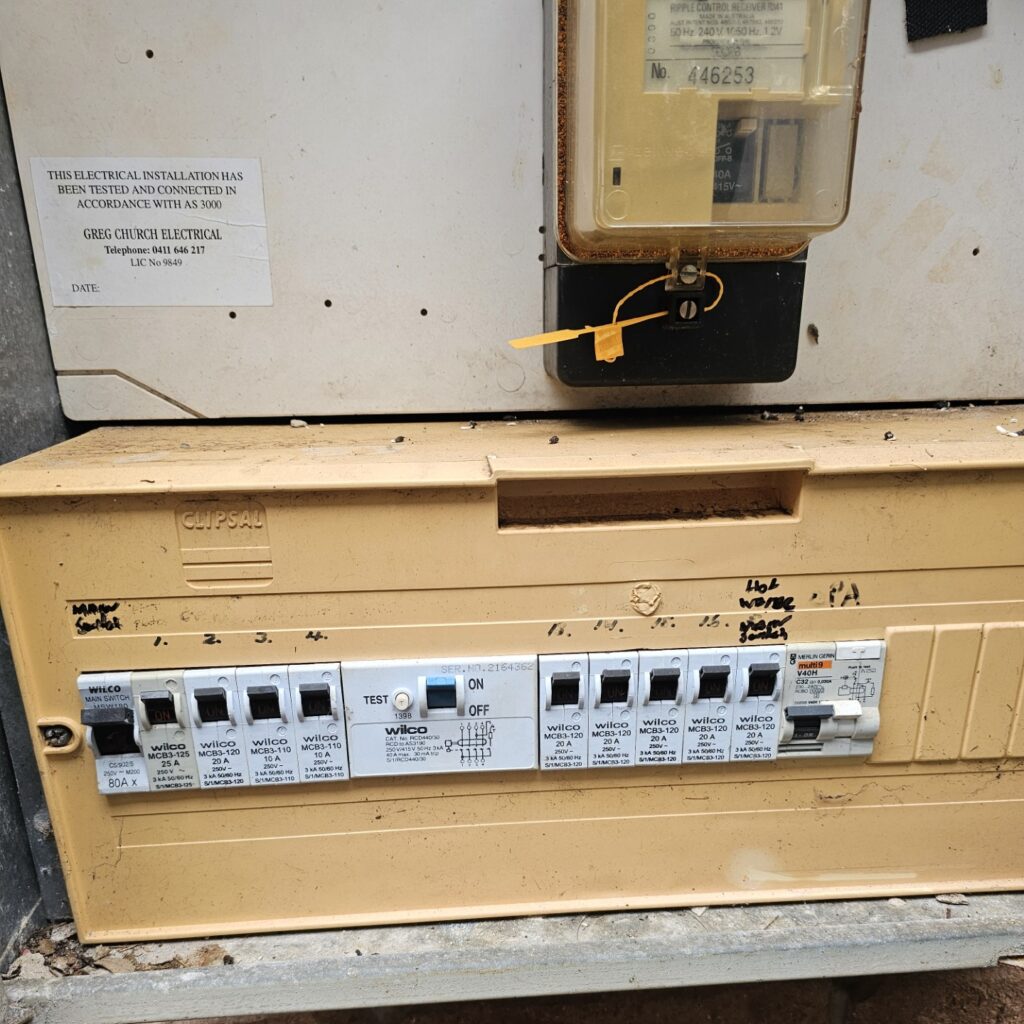

The original switchboard was outdated, featuring obsolete circuit breakers and only a single Residual Current Device (RCD) that protected the entire property. It was not equipped to support solar energy integration or battery storage. Additionally, the circuit labelling was insufficient, rendering it non-compliant with modern standards governing contemporary energy generation systems. This lack of compliance posed a considerable risk to the efficient operation of the newly upgraded systems, making an upgrade imperative.

Is a Three-Phase Upgrade Truly Necessary for Your System?

When assessing the requirements for a 17.86kW solar system paired with a 30kWh battery, there is a common misconception that a three-phase upgrade is essential. This misunderstanding can have significant financial repercussions for the homeowner, potentially leading to expenses ranging from £3,500 to £6,000, coupled with lengthy approval processes from Energex for network modifications.

In-Depth Technical Assessment of Upgrade Requirements

Two critical factors were pivotal in determining the necessity of a three-phase upgrade. Firstly, the supply cable for the residence was strategically positioned close to the street junction, allowing the voltage rise calculation for solar energy export to remain comfortably within Energex's single-phase limit of 2%. Secondly, as the solar and battery systems are specifically designed to alleviate demand on the grid rather than exacerbate it, there was no technical rationale from the network's perspective indicating a need for a three-phase upgrade. Additionally, the ducted air conditioning system was also found to meet essential criteria for efficient single-phase operation.

As a result, the decision was made to retain the existing single-phase configuration. The switchboard was upgraded to ensure it could safely and competently accommodate all new electrical loads without compromising safety or compliance with regulatory standards.

Thorough Examination of Installed Components for Enhanced Safety and Compliance

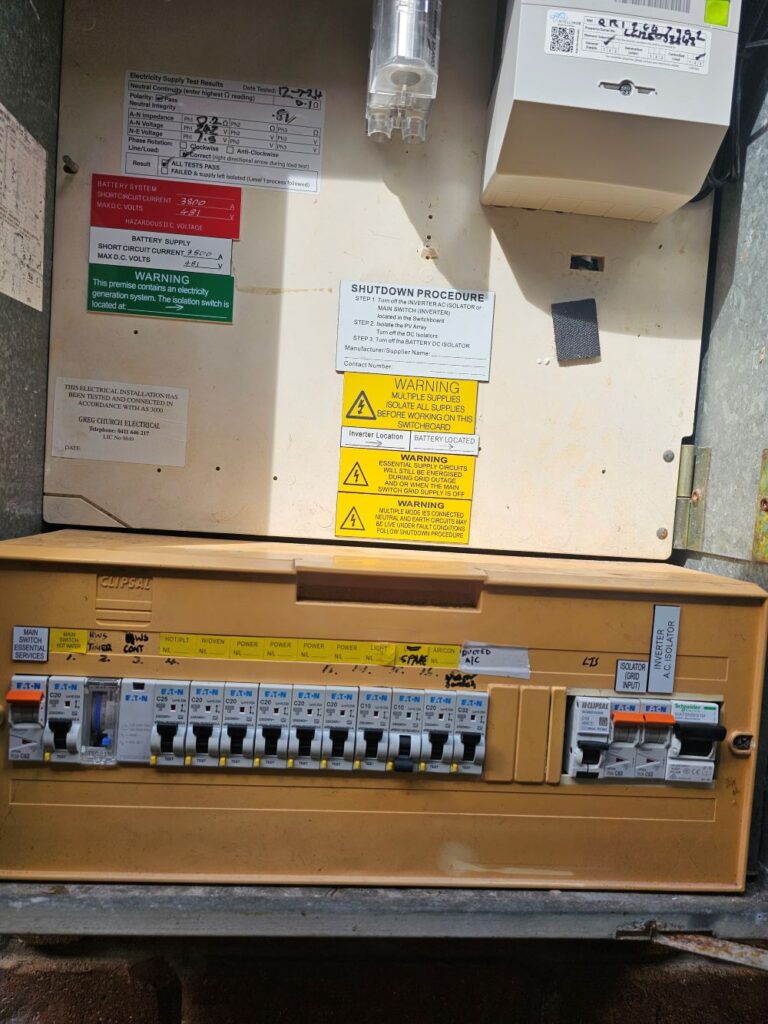

The existing switchboard underwent a complete dismantling and a meticulous reconfiguration process. Each circuit breaker was replaced with new, appropriately rated units sourced from Eaton, with every breaker carefully labelled for easy identification. The circuits were methodically separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to bolster safety and ensure adherence to current regulations.

A timer was installed into the hot water service to guarantee efficient operation during peak solar generation hours. This strategic addition significantly diminishes reliance on the grid by optimising the utilisation of the solar system's output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was implemented to ensure optimal functionality and efficiency.

The upgraded switchboard was designed for seamless integration with both the solar inverter and the battery system. This encompassed the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system's rating at 481V DC, featuring a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted successfully and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring that it is appropriately configured for any future electrical service work required at the property.

Homeowner Reaps Benefits from Successful Upgrade

The homeowner has now successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they have avoided unnecessary expenses associated with a three-phase upgrade that was not essential for their specific needs and circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be critical in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to perform a comprehensive analysis. We will provide you with a precise assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee that no upselling will take place; you will receive an accurate evaluation tailored specifically to your home.

Your Frequently Asked Questions Addressed

How do electricians determine the necessity of three-phase power for solar systems?

The assessment hinges on two primary factors: voltage rise and load demand. Electricians consider the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex allows a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system's export remains within this limit, a single-phase configuration is sufficient. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively maintaining the voltage rise within acceptable parameters.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not determine the requirement for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are introduced to the property. Key factors include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system transmits power back into the grid. The greater the distance from your home to the street junction, the higher the resistance in the cable, resulting in an increased voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors such as Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system's performance remains within this limit to ascertain whether a single-phase or three-phase power configuration is suitable for your property.
